AR1 – M22 Premium

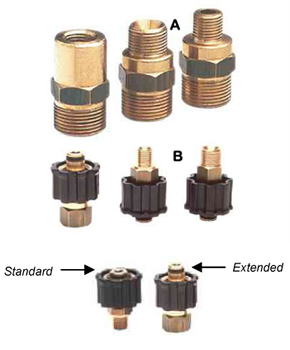

Nipple "A"
- Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 26.0029.31 |
Nipple A |
1/8” Bsp M |
| 26.0051.31 |
Nipple A |
1/4” Bsp M |
| 26.0002.31 |
Nipple A |
1/4” Bsp F |
| 26.0030.31 |
Nipple A |
3/8” Bsp M |
| 26.0031.31 |
Nipple A |
3/8” Bsp F |
| 26.0032.31 |
Nipple A |
1/2” Bsp M |
| 26.0033.31 |
Nipple A |
1/2” Bsp F |
Coupling "B"
- Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 26.0250.05 |
Coupling B |
1/8” Bsp M |
| 26.0250.30 |
Coupling B |
1/4” Bsp M |
| 26.0250.20 |
Coupling B |
1/4” Bsp F |
| 26.0250.50 |
Coupling B |
3/8” Bsp M |
| 26.0250.40 |
Coupling B |
3/8” Bsp F |
| 26.0250.70 |
Coupling B |
1/2” Bsp M |
| 26.0250.60 |
Coupling B |
1/2” Bsp F |
MV – Standard M22 Standard
Nipple "A"
- Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3600 Psi (maximum)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 0212003650 |
Nipple A |
1/4” Bsp M |
| 0212003630 |
Nipple A |
1/4” Bsp F |
| 0212003640 |
Nipple A |
3/8” Bsp M |
| 0212003620 |
Nipple A |
3/8” Bsp F |
| 0212003600 |
Nipple A |
1/2” Bsp F |
| 0212003610 |
Nipple A |
1/2” Bsp M |
Coupling "B"
- Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3600 Psi (maximum)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 0212003550 |
Coupling B |
1/4” Bsp M |
| 0212003530 |
Coupling B |
1/4” Bsp F |
| 0212003540 |
Coupling B |
3/8” Bsp M |
| 0212003520 |
Coupling B |
3/8” Bsp F |
| 0212003500 |
Coupling B |
1/2” Bsp F |
| 0212003510 |
Coupling B |
1/2” Bsp M |
AR1 –M22 Connectors
Nipple "A"
- Inlet & Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 26.0005.31 |
Nipple A |
M22 |
| 26.0055.00 |
c/w Knob |
M22 |
| 0212003660 |
Budget |
M22 |
Coupling "B"
- Inlet & Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 85.300.146 |
Coupling B |
M22 |
| 147 24.0403 |
M22 Socket |
M22 Socket |
AR5 – M22 Extended
Nipple "A"
- Outlet: M22 x 1.5M Ext - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 26.0940.40 |
Nipple A |
3/8” Bsp F |
| 26.0940.70 |
Nipple A |
1/2” Bsp M |
| 26.0940.70 |
Nipple A |
1/2” Bsp M |
| 26.0940.70 |
Nipple A |
1/2” Bsp M |
Coupling "B"
- Outlet: M22 x 1.5M Std - 14mm pin
- Pressure to 3650 Psi (max. 4050 Psi)
- Flow to 40 l/min.
| Part # |
Type |
Inlet |
| 26.1034.50 |
Coupling B |
1/4” Bsp M |
| 26.1034.20 |
Coupling B |
1/4” Bsp F |
| 26.1034.00 |
Coupling B |
3/8” Bsp M |
| 26.1033.00 |
Coupling B |
3/8” Bsp F |
M22 with QC Plug
| Part # |
Description |
| 85.300.142 |
M22 F x 3/8” Plug |
O RINGS FOR M22 & M24 COUPLINGS
| Part # |
Description |
Suits |
| 145 10.3109.95 |
O Ring |
AR1 14mm
AR 5 (by2) |
| 145 10.4010.01 |
Back Up Ring |
| 125 85.400.120 |
Kit (1 each of above) |
| 145 10.3109.96 |
O Ring |
AR1 15mm |
| 145 30.3110.10 |
O Ring |
AR 9 (by2) |
| 145 10.4011.01 |
Back Up Ring |
