Semi-Professional – Scout & KD

B.A.R. Group - Hot Water Scout KD

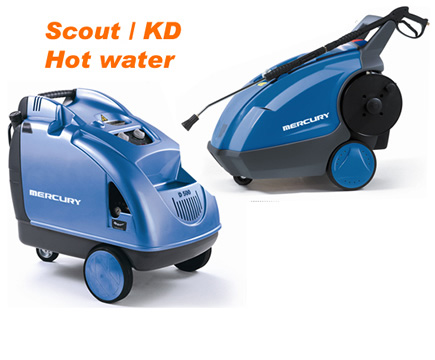

Hot Water - Semi-Professional “KD Scout 150 Extra & KD300”

Semi-Professional use. Defined as one where the machine is to be used at home or in a workshop on a weekly to irregular basis

General Features:

  • Pump
    • 3 Piston Comet Axial pump, flanged directly to the electric motor
    • Forged Brass head is corrosion resistant
    • Quick Coupling fits to standard garden hose
  • Motor
    • Electrical Outlet - single phase 15amp plug
    • New "Easy Start" mechanism guarantees motor will start in all conditions
    • "TOTAL STOP" - automatically shuts down the pressure washer down when the gun is closed
    • Thermal motor protection in case of overheating
  • Heating
    • Double Coil vertical boiler with high efficiency
    • Inbuilt 13 Litre Diesel tank
    • Delayed burner start
    • Burner thermostat with temperature adjustment
  • Other
    • Large rubber lined wheels designed for easy movement around the home
    • Inbuilt detergent tank (13 Litre)
Model Scout 150 Extra KD300
Performance
Water Pressure - max. (Psi) 2175 Psi 2030Psi
Water Flow Rate 9 l/min. 10 l/min.
Hose Reel Optional
Electric Motor
Power Rating - kW 2.0 kW 2.2 kW
Voltage 240 Volt 240 Volt
Electrical Outlet Size 15 amp 15 amp
Motor speed - rpm 2800 rpm 2800 rpm
Thermal Motor Protection
Pump
Pump type Axial Axial
Head Brass Brass
Pistons 3 3
Total Stop
Weight - dead 70 kg 90 kg
Dimensions 88 x 50 x 80 97 x 71 x 86
B.A.R. Group - Hot Water Scout KD
Accessories Included
  Standard Options
Gun (with M22 fittings) Lance (no Nozzle) Hose 10m Meg Nozzle Lance c/w Turbo Nozzle Hose Reel+15m Hose Sct included Steam Nozzle c/w Lance Foam Lance
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
B.A.R. Group - Hot Water Scout Accessories
Sct 24100096
KD 24100114
33010787 Sct 32080996
KD 32080805
Sct 16.1315.30
KD 16.1315.35
Sct 33010779
KD 33010777
KD 70020270 Sct
KD 33011100
Sct 33010766
KD 33010901
Options Available
B.A.R. Group - Hot Water Scout Options
B.A.R. Group - Hot Water Scout Options
B.A.R. Group - Hot Water Scout Options
B.A.R. Group - Hot Water Scout Options
B.A.R. Group - Hot Water Scout Options
B.A.R. Group - Hot Water Scout Options
Model Sandblasting Lance Rotating Brush Suction Filter Kit Hose Extensions (8m) Floor Cleaner Suction Hose Kit
Scout 33010989 14130033 10020129-1 33010774 (8m) 30450029 32990019
KD300 33010771 14130029 10020129-1 33010769 (8m) 30450041 32990019
