Hot Water – Industrial Golia Series

B.A.R. Group - Hot Water Golia

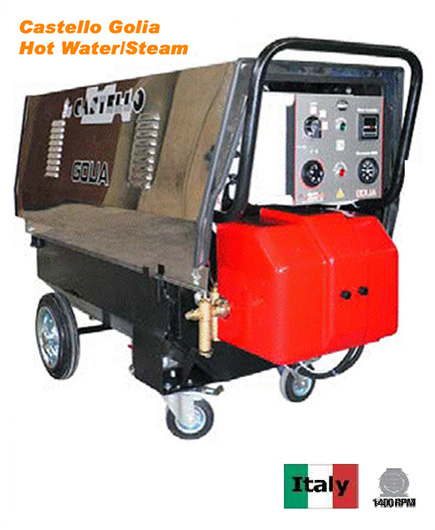

Golia – Super heavy duty, with horizontal boiler and water cooling system.

Hot Water Industrial "Golia". A big machine ideal for mines and very heavy work. Fitted with a water cooled horizontal boiler that pre warms the water. The water takes longer to heat, but remains hot and stable for a longer time.

General Features:
Water temperature up to 90°C and Steam to 140°.

General Features

  • Pump
    • Interpump Italian Plunger pump
  • Motor
    • Heavy duty 4 pole electric motor (1400 rpm) for extended life
    • Delayed TOTAL STOP automatically shuts down the pressure washer when the gun is closed, adjustable from 0 to 30 seconds
    • Automatic stop if machine left idle for 30 minutes
    • Machine Stop in case of micro leakages (hunts 5 times and then shuts down)
  • Boiler
    • Double Coil (C3) vertical boiler in 1/2” tube, 50 metres long
    • Delayed 3 second start of the burner to reduce smoke
    • Flame control device system
  • Control Panel
    • Full function, waterproof display panel
    • Temperature adjustment knob
    • Low voltage controls
  • Other
    • Strong heavy duty stainless canopy
    • Large capacity diesel tank, mounted at rear for both electrical and visual monitoring
    • High pressure detergent pick up system with regulation
    • Water break tank to ensure water intake is kept up to the pump for higher flow models (reduces possible cavitation). Machine cuts out when there is no water (optional)
Model Golia 20/21 Golia 20/30 Golia 33/21
Performance
Water Pressure - max. 2900 Psi 2900 Psi 4800 Psi
Water Flow Rate 21 l/min. 30 l/min. 21 l/min.
Water Temperature 30°-90°C 30°-90°C 30°-90°C
Steam Up to 140°C Up to 140°C Up to 140°C
Hose Reel Optional Optional Optional
Electric Motor
Power Rating - kW 7.5 kW 11 kW 13.4 kW
Voltage 415 Volt 415 Volt 415 Volt
Electrical Outlet Size n/a n/a n/a
Motor Speed - Rpm 1440 Rpm 1440 Rpm 1440 Rpm
Pump
Pump - Type Plunger Plunger Plunger
Pump - Head Brass Brass Brass
Pump - Interpump WS202 WS202 WS202
Pump - Total Stop
Water Tank
Weight 285 kg
Dimensions L 1300 x W 620 x H 1000
