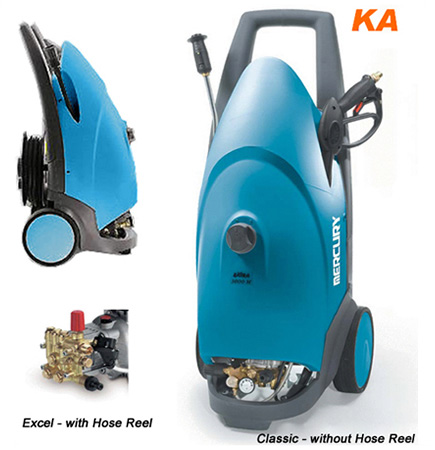

Cold Water - Domestic “KA2500, KA3200 & KA5000”

Semi-professional to Professional use. Designed to be used around the home or factory / trades on a weekly to irregular basis.

General Features:

• Pump
  • 3 Piston Axial pump, flanged directly to the electric motor
  • Brass head pump on all models
  • Quick Coupling fits to standard garden hose

• Motor
  • Electrical Outlet - see matrix
  • New "Easy Start" mechanism guarantees motor will start in all conditions
  • "TOTAL STOP" - automatically shuts down the pressure washer down when the gun is closed
  • Thermal motor protection in case of overheating, with manual restart

• Other
  • Inbuilt, removable tank for low pressure detergent application
  • Large 220mm rubber lined wheels designed to make it easy to move around steps or bumpy ground
  • Inbuilt housing for tidy storage of gun & lance
  • Loaded with accessories
  • M22 style fittings, for a surer lock

Model	KA2500 Excel	KA3200 Excel	KA5000 Classic
Performance
Water Pressure- max (Psi)	2030 Psi	2175 Psi	2900 Psi
Water Flow Rate	9.0 l/min	10 l/min	12 l/min
Hose Reel	√	√	X
Electric Motor
Power Rating - kW	1.8 kW	2.2 kW	3.7 kW
Voltage	240 Volt	240 Volt	415 Volt
Electrical Outlet Size	10 amp	15 amp	n/a
Motor Speed - rpm	2800 rpm	2800 rpm	2800 rpm
Thermal Motor Protection	√	√	√
Pump
Pump - Type	Axial	Axial	Axial
Pump - Head	Brass	Brass	Brass
Pump - Pistons	3	3	3
Pump - Total Stop	√	√	√
Weight	36 kg	36 kg	36 kg
Dimensions (cm)	L 94 x W 42 x H 42	L 94 x W 42 x H 42	L 94 x W 42 x H 42
