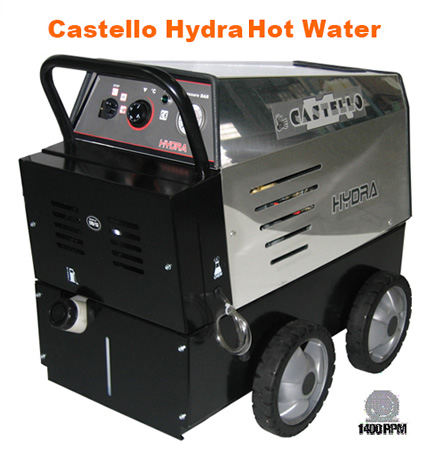

Hot Water – Professional Hydra
Hot Water - Professional Hydra
Professional use – defined as one where the machine is to be used regularly, but not constant basis.
General Features:

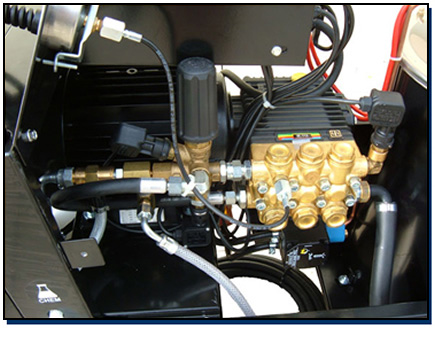

- Pump
- 3 Piston Interpump Piston pump, flanged directly to the electric motor
- Forged Brass head is corrosion resistant
- Water filter at pump inlet to prevent damage to the pump
- Quick Coupling fits to standard garden hose
- Motor
- Electrical Outlet - single phase 15amp plug
- Delayed TOTAL STOP automatically shuts down the pressure washer down when the gun is closed
- Thermal motor protection in case of overheating
- Heating
- Vertical Double Coil vertical boiler, with 3/8” spiral coil
- Inbuilt Diesel tank
- Delayed burner start
- Thermostat dial to regulate water temperature between 30 and 80°C
- Other
- Stainless cover
- Accessories are from PA, for the best quality
- 4 Large rubber lined wheels designed for easy mobility
- Low Pressure detergent pick up
| Model |
Hydra M12/10 |
| Performance |
| Water Pressure - max. (Psi) |
1740 Psi |
| Water Flow Rate |
10 l/min. |
| Water Temperature |
0-80°C |
| Hose Reel |
X |
| Electric Motor |
| Power Rating - kW |
2.2 kW |
| Voltage |
240 Volt |
| Electrical Outlet Size |
15 amp |
| Motor speed - rpm |
1440 Rpm |
| Thermal Motor Protection |
√ |
| Pump |
| Pump Type |
Interpump Plunger |
| Pump Model |
W112 |
| Pump Head |
Brass |
| Pump Pistons |
3 |
| Pump Total Stop |
√ |
| Weight - dead |
|
| Dimensions |
|
| Accessories Included |
| |
Standard Options |
| Gun |
Lance 900mm (no Nozzle) |
Hose 10m 5/16” |
Meg Nozzle |
Lance c/w Turbo Nozzle |
|
|
|
|
|
|
| 60030900 |
61021500 |
62052000 |
16.1315.xx |
tba |
| Options Available |
|
|
|
|
|
|
|
|
| Model |
Sandblasting Lance |
Rotating Brush |
Suction Filter Kit |
Drain Cleaning |
Hose Extensions |
Suction Hose Kit |
| Hydra |
33010771 |
14130033 |
10020129-1 |
30450029 |
33010774 (8m) |
32990019 |
