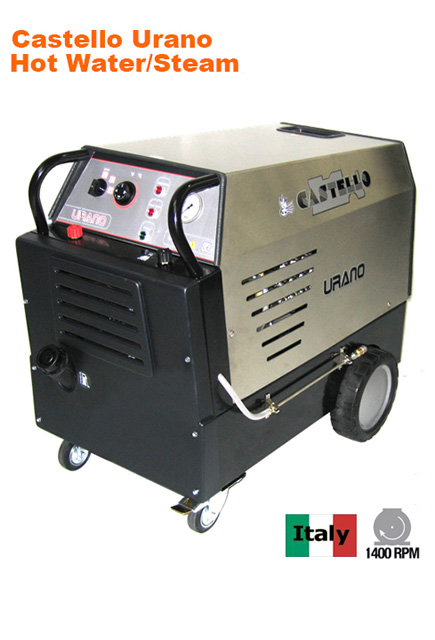

Hot Water – Industrial Castello Urano

Urano - Our heavy duty, high flow series, fitted with an industrial 1440 rpm electric motor, Interpump Italian plunger pump and
brushed stainless cover.

B.A.R. Group - Hot Water Industrial Urano

Hot Water - Industrial "Urano"

Industrial use – defined as one where the machine is to be used in an industrial application, and on a constant basis.

General Features:

Water temperature up to 90°C and Steam to 140°C. The Urano series does not run a computer which means in case of problems a warning light will appear to show a problem but you can still use your machine until a technician arrives.

  • Pump
    • Interpump Italian Plunger pump
  • Motor
    • Double flange motor with elastic joint (not KF3.11)
    • Delayed TOTAL STOP automatically shuts down the pressure washer down when the gun is closed, adjustable from 0 to 30 seconds
    • Automatic stop if machine left idle for 30 minutes
    • Machine Stop in case of micro leakages (hunts 5 times and then shuts down)
  • Boiler
    • Double Coil (C2) vertical boiler with weldless double coil
    • Delayed 3 second start of the burner to reduce smoke
    • Flame control device system
  • Control Panel
    • Full function, waterproof display panel
    • Temperature adjustment knob
    • Low voltage controls
  • Other
    • Strong heavy duty stainless canopy
    • Large capacity diesel tank
    • High pressure detergent pick up system with regulation
    • Water break tank to ensure water intake is kept up to the pump for higher flow models (reduces possible cavitation). Machine cuts out when there is no water.
    • Water softener device with pump & tank
Model Urano 10/12 Urano 15/21 Urano 20/15 Urano 20/21
Performance
Water Pressure - max. (Psi) 1500 Psi 2175 Psi 2900 Psi 2900 Psi
Water Flow Rate 12 l/min. 21 l/min. 15 l/min. 21 l/min.
Water Temperature 30°C-90°C 30°C-90°C 30°C-90°C 30°C-90°C
Steam Up to 140°C Up to 140°C Up to 140°C Up to 140°C
Coil C2 C2 C2 C3
Hose Reel Optional Optional Optional Optional
Electric Motor
Power Rating - kW 2.2 kW 5.5 kW 5.5 kW 6.5 kW
Voltage 240 Volt 415 Volt 415 Volt 415 Volt
Electrical Outlet Size 15 amp n/a n/a n/a
Pump/Motor Coupling Hollow Shaft Flexible Coupling Flexible Coupling Flexible Coupling
Motor Speed - Rpm 1440 Rpm 1440 Rpm 1440 Rpm 1440 Rpm
Pump
Pump - Type Plunger Plunger Plunger Plunger
Pump - Head Brass Brass Brass Brass
Pump - Interpump W112 WS202 WS201 WS202
Pump - Total Stop
Water Tank
Weight
Dimensions L 1000 x W 600 x H 800
Accessories Included
  Standard Options
Gun (with M22 fittings) Lance 120mm (no nozzle) Hose 10m R2 5/16” Meg Nozzle Lance c/w Turbo Nozzle Steam Nozzle c/w Lance Hose Reel 3 Phase Plug 4Pin
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
B.A.R. Group - Urano Accessories
60031700 61022100 3.11 62052000 145 16.1315.45   33011100   165 P4P20ASP
Options Available
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
B.A.R. Group - Urano Options
Sandblasting Lance Foam Lance Rotating Brush Drain Cleaning Kit 25m Stainless Coil Hose extensions Suction Hose Kit Coil Descaler (10ltr)
Urano 33010772 33010901 14130030 30450041   33010985 (10m) 32990019 00600002
