Hot Water – Industrial KF Series
KF SERIES - Our heavy duty series, fitted with an industrial 1440Rpm electric motor, premium Comet Italian pump and heavy duty frame.
Proudly built by Comet in Italy

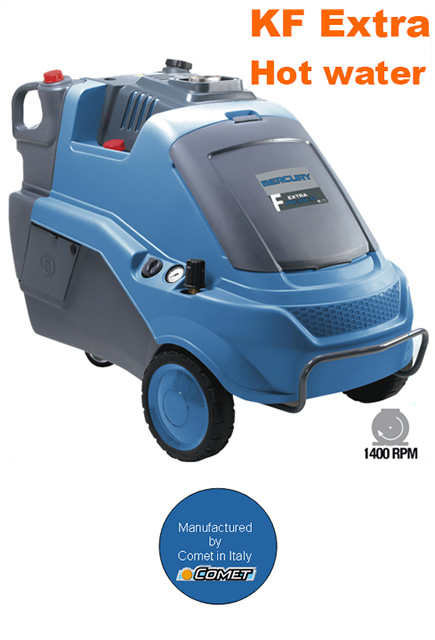

Hot Water - Industrial "KF EXTRA"
Industrial use – defined as one where the machine is to be used in an industrial application, and on a constant basis.
General Features:
- Pump
- Comet Premium Plunger pump (not KF3.11) with Brass Head and ceramic pistons
- Motor
- Heavy duty 4 pole electric motor (1400 rpm) with corrosion protection
- Double flange motor with elastic joint (not KF3.11)
- Self priming pump with "Easy Start" mechanism guarantees motor will start in all conditions
- Delayed TOTAL STOP automatically shuts down the pressure washer down when the gun is closed
- Motor protection with thermal relay in case of overheating
- Boiler
- Double Coil boiler with stainless external boiler body
- Delayed burner start
- Flame control device system

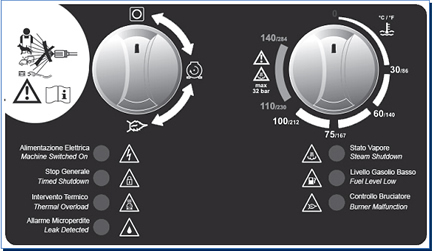

- Control Panel
- Display Lamps for "machine switched on", "low fuel level", "timed shutdown", "leak detected", "motor thermal overload" and "burner malfunction"
- Temperature adjustment knob
- Low voltage controls
- Remote control switch
- Other
- Strong heavy duty metal frame with bumper to prevent transit damage
- Large capacity 19 Litre diesel tank
- Built in 16 Litre detergent tank
- High pressure detergent system with regulation
- Inbuilt water tank with float to guarantee water is kept up to the pump
- Water softener device with pump & tank
| Model |
KF3.11 |
KF8.15 |
KF8.15 KF9.18 |
KF10.21 |
| Performance |
| Water Pressure - max. (Psi) |
1595 Psi |
2900 Psi |
2900 Psi |
3000 Psi |
| Water Flow Rate |
11 l/min. |
15 l/min. |
18 l/min. |
21 l/min. |
| Water Temperature |
0-90°C |
0-90°C |
0-90°C |
0-90°C |
| Hose Reel |
Optional |
Optional |
Optional |
Optional |
| Electric Motor |
| Power Rating - kW |
2.2 kW |
5.5 kW |
6.6 kW |
8.9 kW |
| Voltage |
240 Volt |
415 Volt |
415 Volt |
415 Volt |
| Electrical Outlet Size |
15 amp |
n/a |
n/a |
n/a |
| Motor Speed - Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm |
1440 Rpm |
| Thermal Motor Protection |
√ |
√ |
√ |
√ |
| Pump |
| Pump - Type |
Plunger |
Premium |
Premium |
Premium |
| Pump - Head |
Brass |
Brass |
Brass |
Brass |
| Pump - Pistons |
3 |
3 |
3 |
3 |
| Pump - Total Stop |
√ |
√ |
√ |
√ |
| Weight |
109 kg |
125 kg |
150 kg |
165 kg |
| Dimensions |
L 132 x W 82 x H 96 |
| Accessories Included |
| |
Standard Options |
| Gun (with M22 fittings) |
Lance |
Hose 10m |
Meg Nozzle |
Lance c/w Turbo Nozzle |
Hose Reel |
Steam Nozzle c/w Lance |
3 Phase Plug 4Pin |
|
|
|
|
|
|
|
|
|
| 24100114 |
3.10 33010976
15/19 33010974 |
3.10 32081050
15/19 33010987 |
3.10 16.1315.40
15/19 16.1325.50 |
3.10 33010777
15/19 33010983 |
3.10 70020270 |
33011100 |
165 P4P20ASP |
| Options Available |
|
|
|
|
|
|
|
|
|
| Sandblasting Lance |
Foam Lance |
Rotating Brush |
Drain Cleaning Kit 25m |
Stainless Coil |
Hose extensions |
Suction Hose Kit |
Coil Descaler (10ltr) |
KF3.11 33010771
KF8.15 33010772
KF9.18 33010772
KF20.2 1 33010772 |
33010901
33010901
33010901
33010901 |
14130029
14130030
14130030 |
30450041
30450041
30450036 |
|
33010774 (10m)
33010985 (10m)
33010946 (10m) |
32990019
32990019
32990019
2990019 |
00600002
00600002
00600002
00600002 |

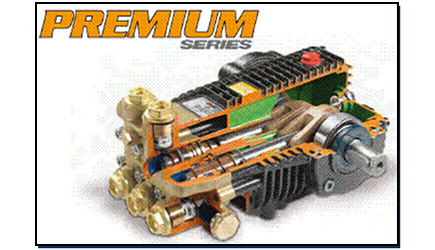

The new Comet Premium Pump - The most modern designed, industrial pump in the High Pressure cleaning market. The Comet Italian R&D development team say this is the pump the industry is talking about.
Important. Owners check list:
At machine Start Up:
- Connect water supply to machine, checking filter is clean
- Turn water on
- Check Pump oil, diesel fuel and detergent levels
- Check high pressure hose for wear, leaks or damage
- Turn machine on
- Turn Control switch to Hot
- Set thermostat to desired temperature
- Operate
After use:
- Turn thermostat to zero
- Turn control switch to cold and turn detergent off
- Run machine until lance is cold to touch
- Turn machine off
- Turn off power and water
- Pull trigger to release any line pressure
