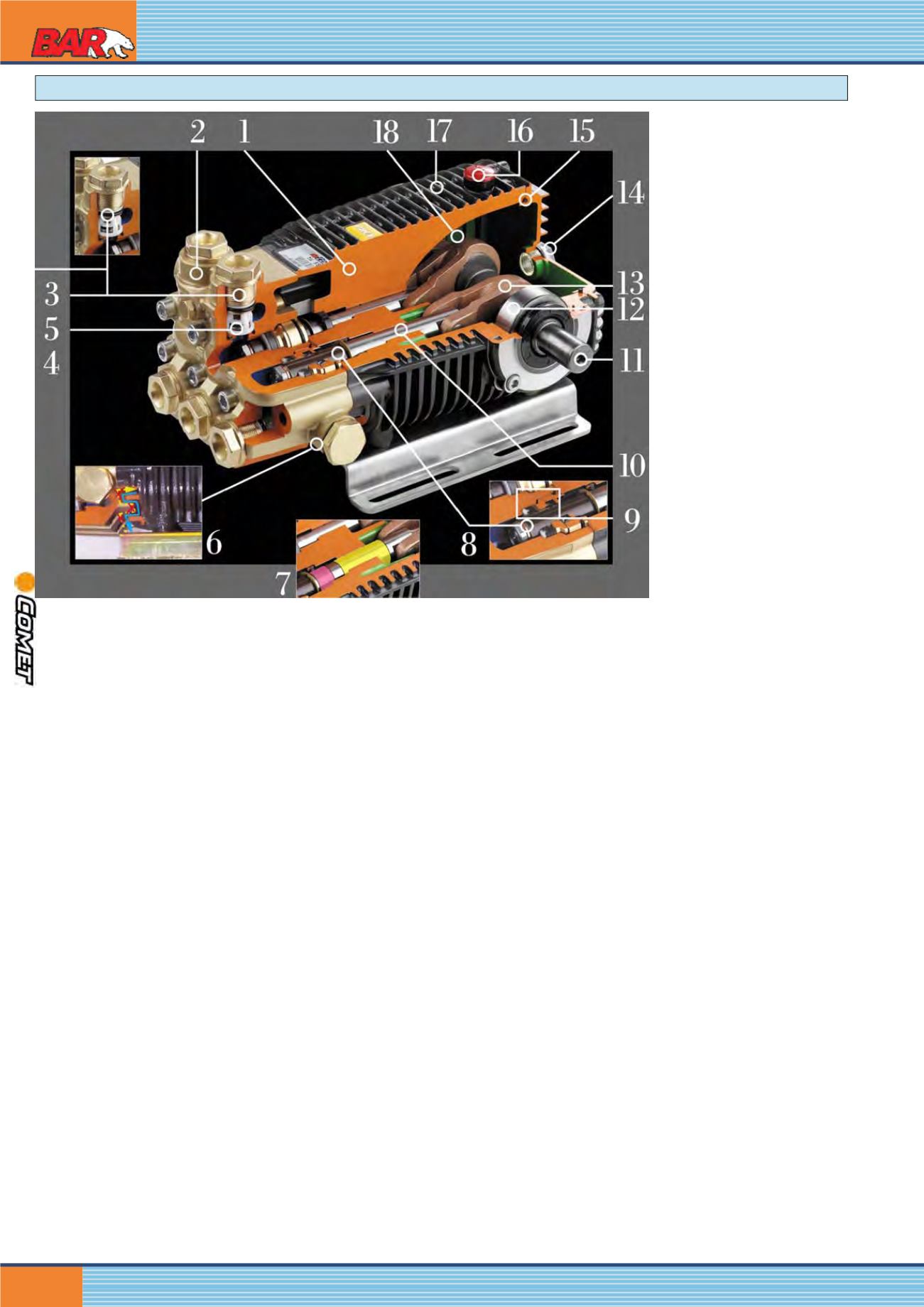

1. Crankcase - Die Cast Aluminium
2. Forged Brass Head
3. Valve Caps - O rings are recessed
further into the pump head and
reinforced with an anti-extrusion ring
to prevent the O Ring popping at
high pressure
4. Encapsulated Valve Seat with O
Ring and Anti extrusion for TW
models
5. Stainless Steel Check Valves
6. Exclusive Coupling System between
pump head and crankcase, prevents
dust and dirt penetrating the piston
area (patent pending)
7. Crankcase Oil System minimizes the
wearing of piston oil seals
8. Solid Ceramic Pistons
9. Exclusive Packing System - new self
lubricating double packing design
with special buna-textile seals and
bronze rings for an exceptional
packing life
10. Piston Guides are heat treated
stainless steel
11. Solid Shaft - 24mm for belt drive,
gearbox or flex couplers
12. Bearings - are premium quality
oversized tapered roller bearings
13. Connecting Rods are one piece
bronze alloy
14. Oil sight glass
15. O Ring sealing system between
crankshaft and back cover
16. Oil vented dipstick
17. Crankcase completely surrounded
by large fins for an efficient oil dras-
tic reduction of operating tempera-
ture
18. Large Oil capacity dissipated heat
and improves lubrication for longer
life
PREMIUM PUMPS - Features
COMET Piston Pumps
Features of Premium Pump
